Description
The Chemguard Defender series of mobile foam trailers are built with unit integrity in mind. Constructed from structural steel rated at a tensile strength of over 36,000 lbs per
square inch and finished off with high gloss polyurethane enamel, Defender Series trailers are economical, extremely durable, and corrosion resistant.
Designed and developed for extreme incident flexibility, the Defender series of trailers are offered with a wide variety of options giving you the ability to custom design your own unit
to best fit the specific needs of your department or facility. When your needs require a large surplus of fire suppression foam, the Defender Series of tote trailers combine a unique
mix of agility and performance to consistently provide storage, transport, and deployment in the harshest operating conditions possible.
Designed and developed for extreme incident flexibility, the Defender series of trailers are offered with a wide variety of options giving you the ability to custom design your own unit
to best fit the specific needs of your department or facility. When your needs require a large surplus of fire suppression foam, the Defender Series of tote trailers combine a unique
mix of agility and performance to consistently provide storage, transport, and deployment in the harshest operating conditions possible.
Standard Features
High Capacity Foam Concentrate Storage
Each Duel Tote Trailer is built to carry 550 or 660 gallons of concentrate. Please specify tote size during inquiry.
Fixed Master Stream Vertical Waterway
Pre-piped vertical waterway constructed from 4” Schedule 40 pipe running through a lever operated butterfly valve. The waterway is
supplied by two 2-1/2” clapered Siamese or two Storz inlet connections mounted one connection point, dual 2-1/2” or Storz, on each side of the trailer. Pre-piped single waterway brass monitor flows 1250 gpm with minimum friction loss. The Chemguard Brahma Monitor is designed for 360
degree rotation with positive lock and is built with stainless steel ball bearings at each swivel joint. A CEN Series Self-Educting foam nozzle comes standard in 350, 500, or 750 gpm
configurations. Each single gallonage constant flow nozzle is adjustable from straight stream to a fog pattern. Standard with heavy duty 5-Star Polished Aluminum wheels with ST225-75-R15 tires. One standard direct nozzle concentrate pick-up connection runs from the front tote of the dual tote trailer. A quick action Cam-Lock
connector with a remote
valve at the monitor platform draws concentrate from the rear tote. The nozzle’s foam concentrate pick-up tube connection is compatible with all Chemguard tote tanks. An optional
drum pick-up hose can provide the ability to access an additional concentrate supply, if needed, in an emergency situation.
Rapid Release Tote Locking System
Every model of trailers has our Rapid Release tote locking system as a standard feature. This enables the end user to quickly replace empty
totes and reload with a full supply of concentrate. For added security we have also included two 3,335 lb heavy duty tie down straps for stability on the open road.
Stabilizing Jacks
All trailers are equipped with one 7,000 pound capacity drop-foot front jack and dual 5,000 pound capacity swing-down rear jacks for stabilization.
Equipment Storage
Large Diamond Plate aluminum hose bins located just above each fender is ideal storage for 2-1/2”, 3”, 4” or 5” hose.
Heavy Duty Construction
For added strength, the dual tote trailers are equipped with two heavy duty 6,000 lb load rated axels with the same E-Z Lube Bearings.
Electric Braking System
Each trailer comes standard with 12” x 2” electric brakes on both axles. The complete system contains an emergency break-away with battery, an
electric brake controller to mount in the towing vehicle, and a brake actuator.
Finish
All Chemguard tote trailers are finished off with a durable red polyurethane enamel.
Safety
Standard non-skid on deck meets requirements of NFPA 1901.
Trailer Options
| 1 - Nozzle / Monitor / Valve |
| 00 |
None |
| 01 |
CEN350/CM1250B-4S W/4” BF VA. And 10-Position Lever |
| 02 |
CEN500/CM1250B-4S W/4” BF VA And 10-Position Lever |
| 03 |
CEN750/CM1250B-4S W/4” BF VA And 10-Position Lever |
| 04 |
CEN1000/CM1250B-4S W/4” BF VA And 10-Position Lever |
| 05* |
CEN1500(RANGER)/CM2000B W/4” BF VA. And 10-Position Lever |
| 06 |
CEN350/CM1250B-4S W/4” BF VA. And Gear Operator |
| 07 |
CEN500/CM1250B-4S W/4” BF VA And Gear Operator |
| 08 |
CEN750/CM1250B-4S W/4” BF VA And Gear Operator |
| 09 |
CEN1000/CM1250B-4S W/4” BF VA And Gear Operator |
| 10* |
CEN1500(RANGER)/CM2000B W/4” BF VA. And Gear Operator |
| 11 |
Other/Special Requires Engineering Approval |
| 2 – Water Inlets |
| 00 |
None |
| 01 |
Single 4” NH(NST) Male With Cap - Each Side |
| 02 |
Single 4” NH(NST) Female With Plug - Each Side |
| 03 |
Single 4.5” NH(NST) Male With Cap - Each Side |
| 04 |
Single 4.5” NH(NST) Female W/ Plug - Each Side |
| 05 |
Single 4” Storz W/Cap Each Side |
| 06 |
Single 5” Storz W/Cap Each Side |
| 07* |
Single 6” Storz W/Cap Each Side |
| 08 |
Two 2.5” NST Female Swivels With Clapper & Plugs Ea. Side |
| 09 |
Two 2.5” NPSH Female Swivels W/ Clappers & Plugs Ea. Side |
| 10 |
Other/Special Requires Engineering Approval |
| 3 – Storage/Eductors - Left |
| 00 |
Standard Aluminum Hose Bin No Eductor |
| 01 |
Standard Aluminum Hose Bin 60 Gpm Pre-Piped Eductor |
| 02 |
Standard Aluminum Hose Bin 95 Gpm Pre-Piped Eductor |
| 03* |
Standard Aluminum Hose Bin 125 Gpm Pre-Piped Eductor |
| 04* |
Standard Aluminum Hose Bin 250 Gpm Pre-Piped Eductor |
| 05 |
Storage Cabinet In Lieu Of Hose Bin - Non-Locking |
| 06 |
Storage Cabinet In Lieu Of Hose Bin – Locking |
| 07 |
Other/Special Requires Engineering Approval |
| 4 – Storage/Eductors - Right |
| 00 |
Standard Aluminum Hose Bin No Eductor |
| 01 |
Standard Aluminum Hose Bin 60 Gpm Pre-Piped Eductor |
| 02 |
Standard Aluminum Hose Bin 95 Gpm Pre-Piped Eductor |
| 03* |
Standard Aluminum Hose Bin 125 Gpm Pre-Piped Eductor |
| 04* |
Standard Aluminum Hose Bin 250 Gpm Pre-Piped Eductor |
| 05 |
Storage Cabinet In Lieu Of Hose Bin - Non-Locking |
| 06 |
Storage Cabinet In Lieu Of Hose Bin – Locking |
| 07 |
Other/Special Requires Engineering Approval |
| 5 – Wheels/Brakes |
| 00*** |
Alum. Star Wheels, Bsw Tires Electric Brakes |
| 01*** |
Alum. Star Wheels, Bsw Tires Free Backing Hyd. Brakes |
| 02 |
White Mod Wheels, Bsw Tires Electric Brakes |
| 03 |
White Mod Wheels, Bsw Tires Free Backing Hyd. Brakes |
| 04*** |
Galvanized Wheels, Bsw Tires Electric Brakes |
| 05*** |
Galvanized Wheels, Bsw Tires Free Backing Hyd. Brakes |
| 06 |
White Spoke Wheels, Bsw Tires Electric Brakes |
| 07 |
White Spoke Wheels, Bsw Tires Free Backing Hyd. Brakes |
| 08*** |
Alum. Mod Wheels, Bsw Tires Electric Brakes |
| 09*** |
Alum. Mod Wheels, Bsw Tires Free Backing Hyd. Brakes |
| 6 – Finish/Operator’s Platform |
| 00 |
Red Urethane Enamel With Red Non-Skid Tape On Deck |
| 01 |
Red Urethane Enamel With Brite Alum. Floorplate Deck |
| 02 |
Red Urethane Enamel With Alum. Diamondback Decking |
| 03 |
Red Epoxy W/Clearcoat And Red Non-Skid Tape On Deck |
| 04 |
Red Epoxy W/Clearcoat And Brite Alum. Floorplate Deck |
| 05 |
Red Epoxy W/Clearcoat And Alum. Diamondback Deck |
| 06 |
Special Color/Finish With Matching Non-Skid Tape On Deck |
| 07 |
Special Color/Finish With Brite Alum. Floorplate Deck |
| 08 |
Special Color/Finish With Alum Diamonback Floor Deck |
| 7 – Front (Tongue) Storage |
| 00 |
None |
| 01 |
6-Inch Deep Open Storage Area |
| 02 |
Small Alum. A-Frame Toolbox |
| 03 |
Large Alum. A-Frame Toolbox |
| 04 |
Small Alum. A-Frame Toolbox With 6” Deep Open Storage |
| 05 |
Large Alum. A-Frame Toolbox With 6” Deep Open Storage |
| 06 |
6” Deep Storage W/ Alum. Floorplate Cover |
| 07 |
6” Deep Storage W/ Alum. Diamondback Flooring Cover |
| 8 – Trailer Coupler |
| 00** |
A-Frame Coupler - 2” Ball Limited To Use W/275 Totes |
| 01 |
A-Frame Coupler - 2-5/16” Ball Usable With All Tote Sizes |
| 02 |
Adjustable Pintle-Eye - 3” Usable With All Tote Sizes |
| 03 |
Adjust. Coupler - 2-5/16” Ball Usable With All Tote Sizes |
| 04 |
Adjust. Clevis - 3/4” Dia. Pin Usable With All Tote Sizes |
| 05 |
Special/Not Described Above Requires Engineering Approval |
| 9 – Battery Maintenance Charger |
| 00 |
Charges Through 6-Pin Connector-Std. W/Elect. Brakes |
| 01 |
Solar Charger Added For Brake Battery |
| 02 |
120 Vac Maintenance Charger Added For Brake Battery |
| 03 |
None-Select For Free-Backing Hydraulic Brakes |
Technical Drawings

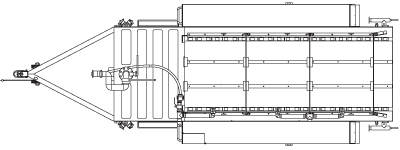

| Triple Tote Trailer - Top |

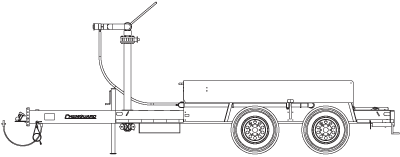

| Triple Tote Trailer - Side |

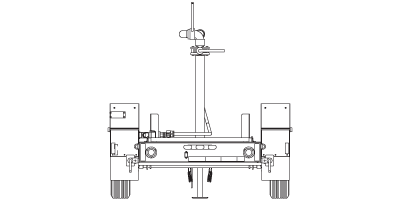

| Triple Tote Trailer - Rear |

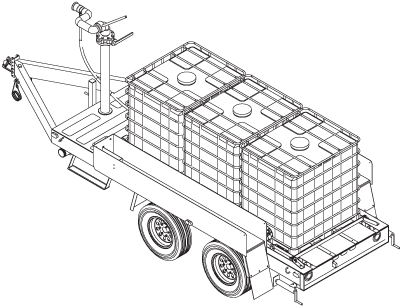

| Triple Tote Trailer - Final Assembly |
|
|
